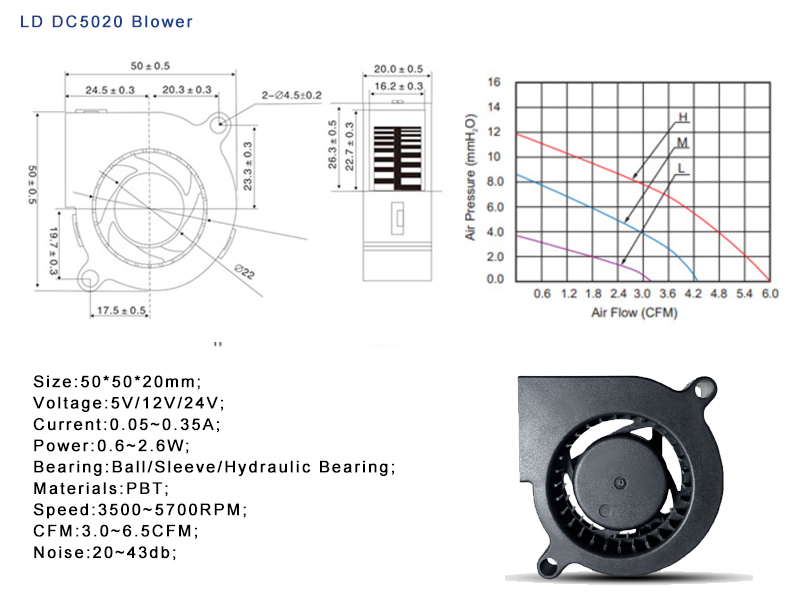

The LDDC5020 Blower is used to replace the Delta BFB0512VHD-F00 Blower,Square-50mm L x 50mm H x 20mm W 12VDC Cooling Fan.
Supports custom functionality
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
Complete comparison of the two parameters
| LDDC5020 Blower | Delta BFB0512VHD-F00 | |
|---|---|---|
| Price | $8~14/pcs. | $0.6~1.5/pcs. |
| Square | 50*50*20mm | 50*50*20mm |
| CFM | 6.8CFM | 6.5CFM |
| Voltage | 12V | 12V |
| Bearing | Ball/Sleeve Bearing | Ball Bearing |
| Current | 0.22A | 0.23A |
| Speed | 5500RPM | 5300RPM |
| Power | 2.64W | 2.76W |
If your device previously used the Delta BFB0512VHD-F00 blower, or if your current design uses the Delta 5020 blower. If you want to control costs, speed up production, and reduce the pressure of capital investment. You can directly consider using our DC5020Blower cooling fan.
This cooling fan is widely used in beauty devices, humidifiers, and other 3C and small home appliances. Long service life, low noise, and high airflow. Received unanimous praise from a wide range of users.
