Product Description
LDDC14025 As a standard 140mm×140mm×25mm product, the cooling fan has become the mainstream choice for electronic device cooling due to its efficient heat dissipation, moderate size, and good compatibility. The design needs to balance four core elements: aerodynamic efficiency, noise control, long lifespan, and intelligent control, while also meeting the special requirements of different application scenarios (such as IP protection, wide temperature range, and anti-electromagnetic interference).

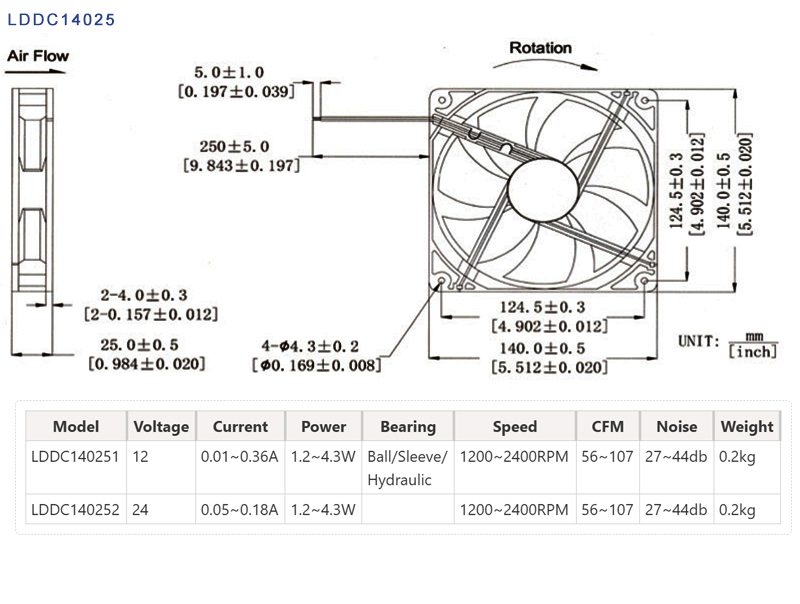

Size:140*140*25mm;
Voltage:12V/24V;
Bearing:Ball Bearing/Sleeve Bearing/Hydraulic Bearing;
Materials:PBT;
Speed:1200~2400RPM;
CFM:56~107CFM;
Noise:27~44db;
LDDC14025 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow
LDDC14025 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC14025 Design Application Product Types:
1. IT and Communication Equipment
Server Cases and Power Supplies, Network Switches, Routers, Data Center Equipment
Industrial computers (IPC), storage devices (NAS/SAN)
2. Industrial Automation
Frequency converters, servo drives, PLC control cabinets, industrial robots
Laser cutting machines, welding equipment, CNC machine cooling systems
3. Power Electronics
UPS Uninterruptible Power Supply, Photovoltaic Inverter, Energy Storage System (ESS), Charging Station
Power Control Cabinet, Transformer Cooling
4. Medical equipment
Medical imaging equipment (CT/MRI), analytical instruments, dental X-ray machines
Ventilators, dialysis machines, and other life support equipment
5. Consumer Electronics and Home Appliances
Desktop computer case, gaming console, high-performance graphics card cooler
3D printers, LED displays, projectors, audio systems
Air purifier, electric car seat ventilation system
6. Other applications
Outdoor communication base stations, high-power LED lighting equipment
Automated vending machines, ATMs, industrial inspection equipment
How to Choose Different Bearings for Cooling Fans:
Sleeve Bearings: These are sleeve bearings that use sliding friction and rely on lubricating oil as a lubricant and friction reducer. Low operating noise and low cost during initial use. The lifespan of ordinary oil-impregnated bearings is typically between 5,000 and 6,000 hours.
Hydraulic Bearing: The hydraulic bearing is an improvement on the oil-impregnated bearing, featuring a larger oil storage space and a unique loop-back oil supply circuit. This type of bearing inherits the advantages of oil-impregnated bearings and has a longer lifespan than oil-impregnated bearings, with an average lifespan of up to 40,000 hours.
Ball bearings: They change the way bearings operate by using rolling friction, which more effectively reduces friction between the bearing surfaces and significantly extends the lifespan of fan bearings. Ball bearings are divided into single ball bearings and double ball bearings:
Single Ball Bearing : Combines sliding friction and rolling friction, with a service life of up to 40,000 hours, but the operating noise will increase.
Double Ball Bearings: These are relatively high-quality bearings with an extremely long lifespan, approximately 50,000-100,000 hours. They are suitable for fans with higher rotational speeds, but the manufacturing cost is high and they tend to produce more noise.
How to Apply for Free Fan Samples?
- For our SVIP customers: All standard in-stock fan models: eligible for 5 free samples per year. Selected parameter-customized products: eligible for 1 free sample per year. Made-to-order products: not eligible for free samples.
- For our VIP customers: All standard in-stock fan models: eligible for 2 free samples per year. Selected parameter-customized products: eligible for 1 free sample per year. Made-to-order products: not eligible for free samples.
- For first-time buyers of our fans: All standard in-stock fan models: eligible for 1 free sample (one-time). Selected parameter-customized products: eligible for 1 free sample (one-time). Made-to-order products: not eligible for free samples.
Shipping Terms for Free Fan Samples
- If you request a sample with a formal order: Samples < 1 kg: free shipping. Samples > 1 kg: eligible for discounted shipping.
- For VIP/SVIP customers with a delivery address in China: Samples < 1 kg: enjoy 3 free shipping opportunities per year. Samples > 1 kg: eligible for discounted shipping.
- For overseas delivery addresses: Shipping cost is charged based on actual freight. To avoid damage, loss or other transit problems, we do not accept pickup by FedEx, UPS or DHL.
