Product Description
LDDC3007 30*30*7mm 5V/12V DC Mini Fan,Ultra-thin micro DC brushless cooling fans are designed for tight spaces and are widely used for localized cooling in various electronic devices. 5V is commonly used for micro devices like Raspberry Pi, while 12V is more widely used in industrial applications such as aroma diffusers, humidifiers, air purifiers, smart speakers, heaters, small routers, switches, optical modems, and base station signal amplifiers.
Size:30*30*07mm;
Voltage:5V/12V;
Speed:5500~11000RPM:
CFM:1.9~3.6CFM:
Noise:18~32db;
Bearing:Sleeve/Ball Bearing;
Materials:PBT;
LDDC3007 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow

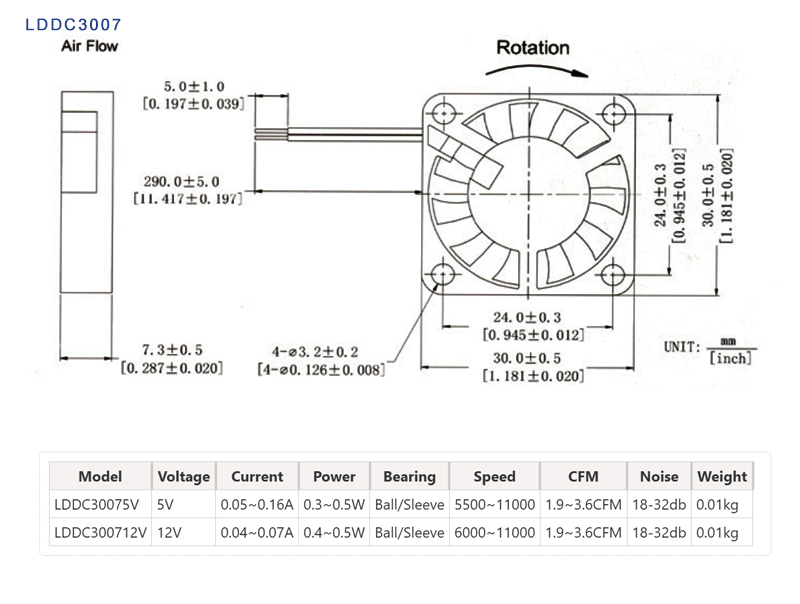

LDDC3007 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC3007 Design Parameters
LDDC3007 has already served over 100 brands of products or equipment. which are often used by repair technicians as replacements:
Delta: AFB0305HA, AFB0312HA, AFB0324HA;
Sunon: MF30070V1-1000C-A99, MF30071V1-1000C-A99, ME30070V1-000C-A99;
CUI:CFM-3007CF-0110-320-20,CFM-3007CF-0112-320-20,CFM-3007CF-0124-320-20;
EBM:414F/12N,414F/23N,414F/2H;;
Sayno Denki: 9GA0305P1G03, 9GA0312P1G03, 9GA0324P1G03;
If you are using the above models in your product design, you can contact us to test samples. If you are a repair service provider, you can confidently use our products as a replacement.
Our cost is only one-third, and the delivery time is only about 15 days.
How to Choose Different Bearings for Cooling Fans:
Sleeve Bearings: These are sleeve bearings that use sliding friction and rely on lubricating oil as a lubricant and friction reducer. Low operating noise and low cost during initial use. The lifespan of ordinary oil-impregnated bearings is typically between 5,000 and 6,000 hours.
Hydraulic Bearing: The hydraulic bearing is an improvement on the oil-impregnated bearing, featuring a larger oil storage space and a unique loop-back oil supply circuit. This type of bearing inherits the advantages of oil-impregnated bearings and has a longer lifespan than oil-impregnated bearings, with an average lifespan of up to 40,000 hours.
Ball bearings: They change the way bearings operate by using rolling friction, which more effectively reduces friction between the bearing surfaces and significantly extends the lifespan of fan bearings. Ball bearings are divided into single ball bearings and double ball bearings:
Single Ball Bearing : Combines sliding friction and rolling friction, with a service life of up to 40,000 hours, but the operating noise will increase.
Double Ball Bearings: These are relatively high-quality bearings with an extremely long lifespan, approximately 50,000-100,000 hours. They are suitable for fans with higher rotational speeds, but the manufacturing cost is high and they tend to produce more noise.
How to Apply for Free Fan Samples?
- For our SVIP customers: All standard in-stock fan models: eligible for 5 free samples per year. Selected parameter-customized products: eligible for 1 free sample per year. Made-to-order products: not eligible for free samples.
- For our VIP customers: All standard in-stock fan models: eligible for 2 free samples per year. Selected parameter-customized products: eligible for 1 free sample per year. Made-to-order products: not eligible for free samples.
- For first-time buyers of our fans: All standard in-stock fan models: eligible for 1 free sample (one-time). Selected parameter-customized products: eligible for 1 free sample (one-time). Made-to-order products: not eligible for free samples.
Shipping Terms for Free Fan Samples
- If you request a sample with a formal order: Samples < 1 kg: free shipping. Samples > 1 kg: eligible for discounted shipping.
- For VIP/SVIP customers with a delivery address in China: Samples < 1 kg: enjoy 3 free shipping opportunities per year. Samples > 1 kg: eligible for discounted shipping.
- For overseas delivery addresses: Shipping cost is charged based on actual freight. To avoid damage, loss or other transit problems, we do not accept pickup by FedEx, UPS or DHL.
