LD Customized  DC4007 Mini Fan,The cooling fan, with its ultra-thin size, low power consumption, and low noise characteristics, has become an ideal cooling solution for space-constrained electronic devices.

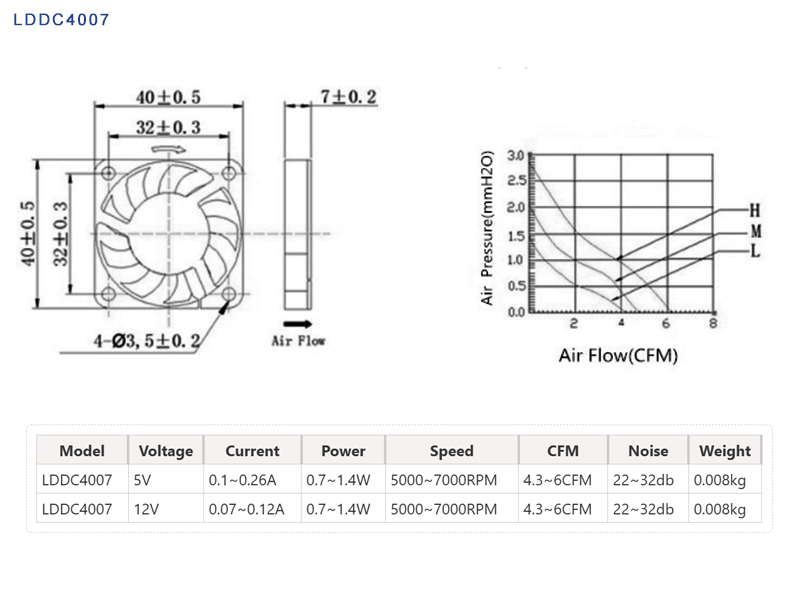

DC4007 Parameter Customization

Size:40*40*07mm;

Voltage:5V/12V;

Bearing:Sleeve Bearing;

Materials:PBT;

Speed:5000~7000RPM;

CFM:4~6CFM;

Noise:22~32db;

LDDC4007 accepts the following customizations ：

Fan Frame and Blade Material

Fan Label

Fan wiring harness, cable length, terminals

Speed/Airflow

LDDC4007 Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC4007 Design Application Product Types:

Consumer Electronics Sector

Mobile computing devices: Raspberry Pi, NVIDIA Jetson Nano, and other development boards, laptop cooling assistance

Communication equipment: routers, switches, optical modems, and other network devices to ensure stable chip operation.

Car Electronics: Car Wireless Charger, GPS Navigator, Dash Cam, suitable for small spaces in the car

Smart Home: Smart speakers, gateways, security cameras, and silent design enhance user experience

Entertainment equipment: gaming console cooling modules, projectors, set-top boxes, extending the lifespan of electronic components

2. Industrial and Medical Fields

Industrial Control: PLC modules, industrial sensors, frequency converters, suitable for high-temperature industrial environments

Medical equipment: portable diagnostic devices, monitors, ultrasound probes, low noise and non-disruptive to the medical environment

Power supply equipment: switching power supplies, adapters, charging station modules, improving conversion efficiency and reliability

3. Other special applications

LED Lighting: High-power LED lights dissipate heat, extending the lifespan of LEDs

Sports equipment: Treadmills, fitness equipment electronic control system cooling

Environmental Monitoring: Portable Weather Stations, Air Quality Monitors, Adapted for Outdoor Changing Environments

3D Printing: Printer control board, hot end cooling, improving printing precision
