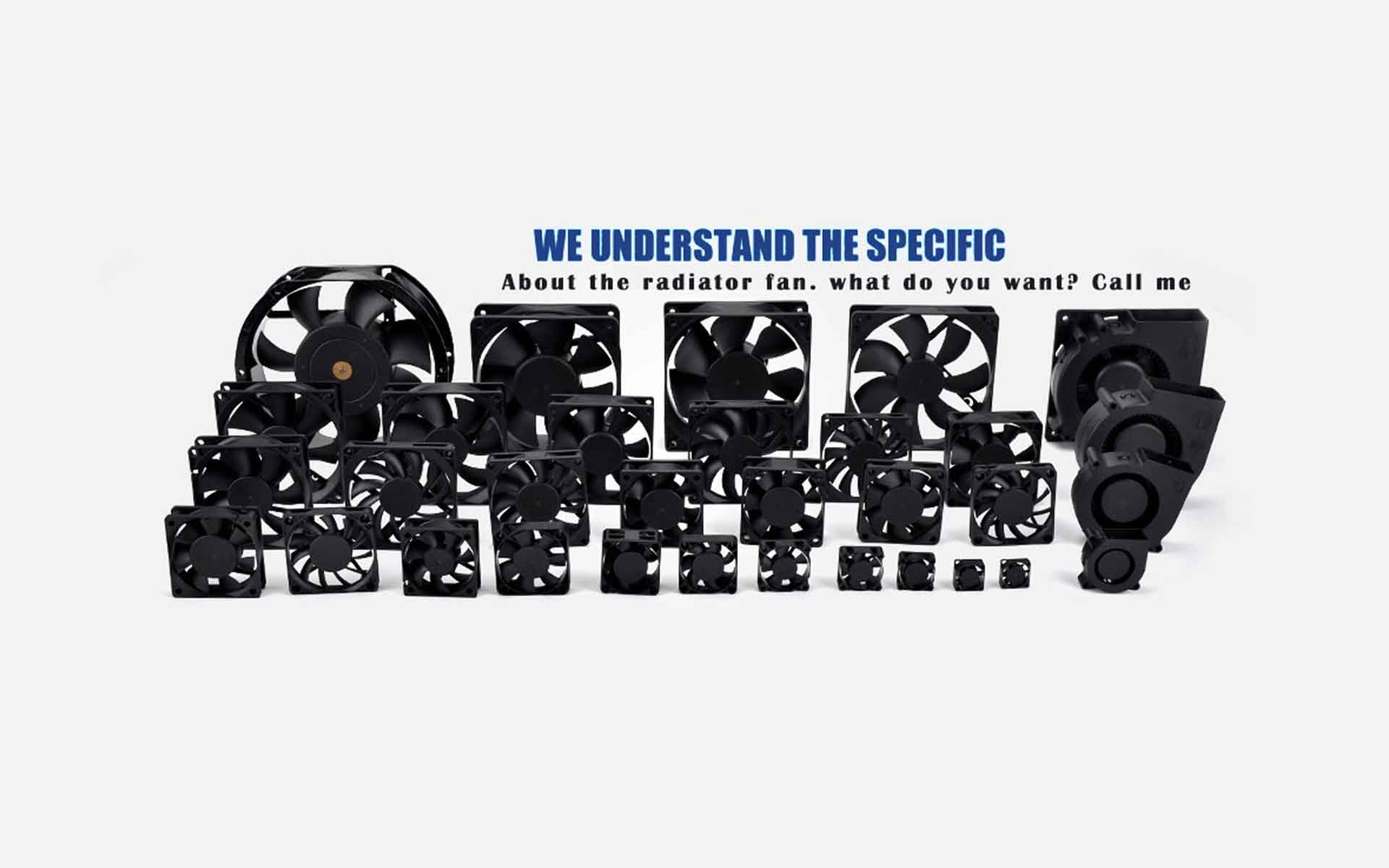

LDDC5010 Fan is designed for precision products that require heat dissipation, such as computer graphics cards, power adapters, 3D printers, electrical control cabinets, and medical equipment.

LDDC5010 accepts the following customizations ：

Fan Frame and Blade Material

Fan Label

Fan wiring harness, cable length, terminals

Speed/Airflow

LDDC5010 Design Parameters

Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS

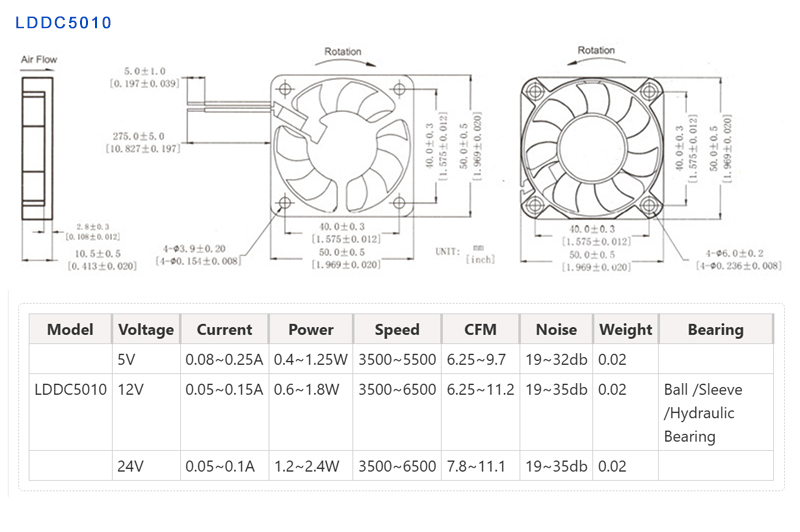

LDDC5010 Design Parameters

LDDC5010 Application Equipment and Scenarios

Our LDDC5010 is used in many electric vehicle chargers, mini PCs, set-top boxes, projectors, digital photo frames, desktop audio amplifiers, routers, small switching power supplies, and LED photography lights on the market.

With the same parameters, our company can replace many mainstream models on the market. With the same specifications, our price is only 1/3 of the market price, and the delivery time is only 1-2 weeks. For those looking to reduce costs and increase efficiency or for repair service companies, we will be your top choice.

MF50100V2-1000U-A99, KDE1205PF2-8,MF50101V1-Q030-S99

AFB0512HB,AFB0524HB,AFB0505HB

3105KL-04W-B40,3105KL-05W-B49,3105KL-05W-B50

9G0512G101,9G0524G101,9G0505G101

How to Choose Different Bearings for Cooling Fans:

Sleeve Bearings: These are sleeve bearings that use sliding friction and rely on lubricating oil as a lubricant and friction reducer. Low operating noise and low cost during initial use. The lifespan of ordinary oil-impregnated bearings is typically between 5,000 and 6,000 hours.

Hydraulic Bearing: The hydraulic bearing is an improvement on the oil-impregnated bearing, featuring a larger oil storage space and a unique loop-back oil supply circuit. This type of bearing inherits the advantages of oil-impregnated bearings and has a longer lifespan than oil-impregnated bearings, with an average lifespan of up to 40,000 hours.

Ball bearings: They change the way bearings operate by using rolling friction, which more effectively reduces friction between the bearing surfaces and significantly extends the lifespan of fan bearings. Ball bearings are divided into single ball bearings and double ball bearings:

Single Ball Bearing : Combines sliding friction and rolling friction, with a service life of up to 40,000 hours, but the operating noise will increase.

Double Ball Bearings: These are relatively high-quality bearings with an extremely long lifespan, approximately 50,000-100,000 hours. They are suitable for fans with higher rotational speeds, but the manufacturing cost is high and they tend to produce more noise.
