LD Customized DC5015 Mini Blower Fan,mini size, high static pressure, and low noise characteristics, has become an ideal choice for modern electronic equipment cooling solutions and is widely used in the consumer electronics sector.

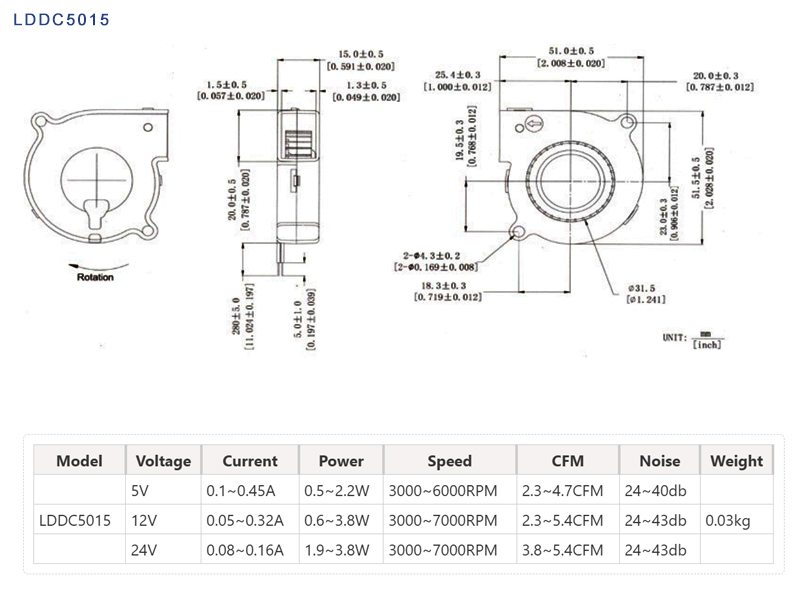

DC5015 Parameter Customization

Size:50*50*15mm;

Voltage:5V/12V/24V;

Bearing:Ball Bearing/Sleeve Bearing/Hydraulic Bearing;

Materials:PBT;

Speed:3000~7000RPM;

CFM:2.3~5.5CFM;

Noise:24~43db;

LDDC5015 accepts the following customizations ：

Fan Frame and Blade Material

Fan Label

Fan wiring harness, cable length, terminals

Speed/Airflow

LDDC5015 Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC5015 Design Application Product Types:

The DC5015 blower is known for its high static pressure characteristics, making it particularly suitable for high-resistance airflow channels and heat-concentrated cooling scenarios, and is mainly used in:

Electronic equipment: 3D printer nozzle cooling, servers / NAS, industrial PCs, frequency converters, inverters, UPS, charging stations

Communication equipment: 5G small base stations, optical modules, routers, switches

Medical equipment: oxygen concentrators, ventilators, blood analyzers, ultrasound equipment

Consumer Electronics: Humidifiers, Air Purifiers, Projectors, Game Consoles, In-Car Electronic Systems

Industrial Automation: PLC Control Cabinets, Sensors, Servo Drives, Robot Joints

Automotive Electronics: Electric Vehicle Control Systems, In-Car Entertainment, ADAS Modules, Battery Management Systems
