LD Customized DC6015 Fan    It is an ideal cooling solution for space-constrained environments, with the design focusing on balancing the four key elements of cooling efficiency, noise control, lifespan, and cost.

DC6015 Parameter Customization

Size:60*60*15mm;

Voltage:5V/12V/24V;

Bearing:Ball Bearing/Sleeve Bearing/Hydraulic Bearing;

Materials:PBT;

Speed:3000~5500RPM;

CFM:13~24CFM;

Noise:27~38db;

LDDC6015 accepts the following customizations ：

Fan Frame and Blade Material

Fan Label

Fan wiring harness, cable length, terminals

Speed/Airflow

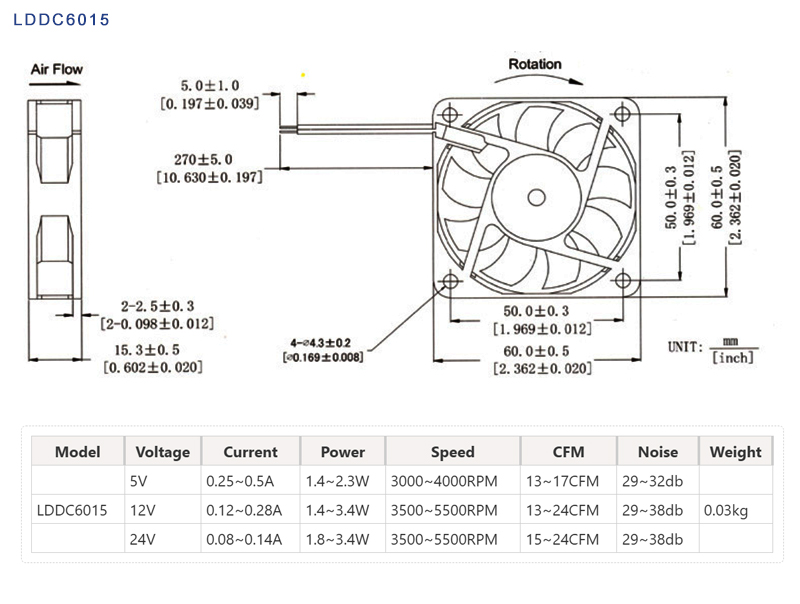

LDDC6015 Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC6015 Design Application Product Types:

Communication equipment: routers, switches, 5G base stations, network set-top boxes, DVR/NVR hard disk recorders

Industrial Control: PLC, Frequency Inverter, Servo Drive, Inverter, Power Conversion System (PCS)

Computers and Servers: PC Cases, Servers, NAS Storage Devices, Raspberry Pi, AI Computing Devices

Power Supply Equipment: LED Driver Power Supply, Industrial Power Modules, UPS Uninterruptible Power Supply, Charging Stations

Medical equipment: monitors, imaging devices, oxygen generators, medical testing instruments

Consumer Electronics: Projectors, Audio Amplifiers, 3D Printers, Gaming Consoles

Lighting equipment: LED display screens, stage lighting, photography lights, UV curing lights

New Energy: Energy Storage PACK (Battery Pack), BMS Battery Management System, Photovoltaic Inverter
