LDDC6020   5V/12V/24V Axial Flow Cooling Fan.

Core specification: 60×60×20mm axial fan, high airflow pressure, high reliability, suitable for compact spaces and high-heat generating equipment, widely used in industries such as manufacturing, communications, healthcare, and consumer electronics.

Key Points for Selection

Voltage selection: 12V (consumer electronics / general purpose), 24V (industrial / high power), 48V (new energy / communication base stations)

Airflow / Static Pressure: Choose high static pressure for enclosed equipment, and high airflow for open equipment.

Bearing types: double ball bearings (long life, high temperature resistance), oil-impregnated bearings (low cost, low noise)

Noise requirements: For medical and office equipment, choose low noise (≤30dBA); industrial equipment can tolerate higher noise levels.

Special requirements: Waterproof and dustproof (IP65+), PWM speed control, FG speed measurement, reverse polarity protection, and other functions.

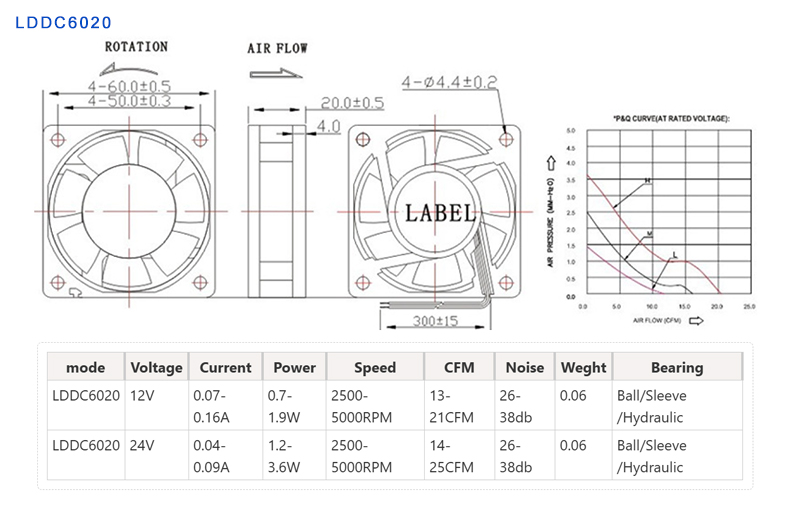

LDDC6020 Design Parameters

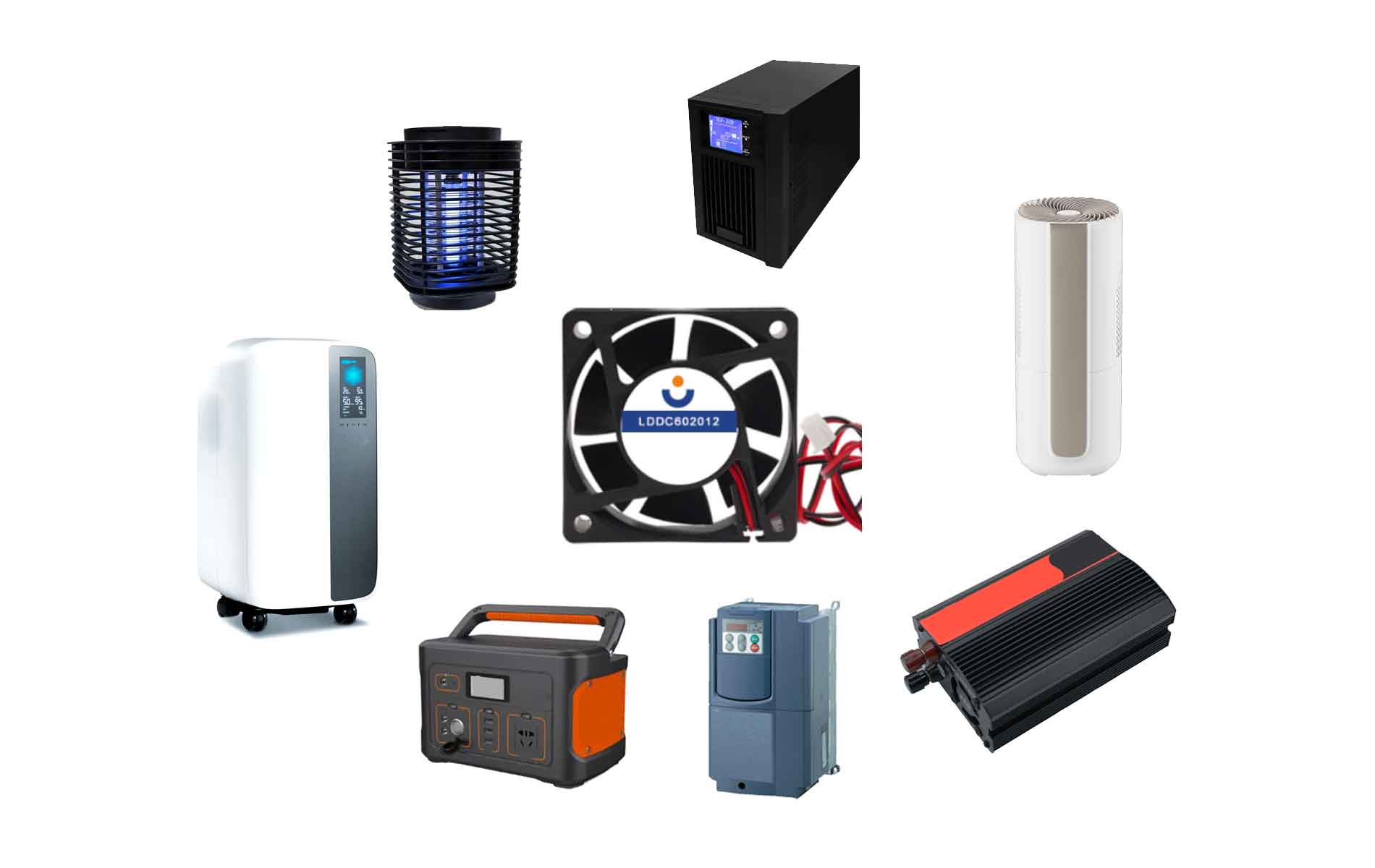

LDDC5010 Application Equipment and Scenarios

Our LDDC5010 is used for Condenser/Light Fixture/Oxygen Generator/Aromatherapy Diffuser/Inverter/Frequency Converter/Mosquito Killer Lamp Cooling Fan.

With the same parameters, our company can replace many mainstream models on the market. With the same specifications, our price is only 1/3 of the market price, and the delivery time is only 1-2 weeks. For those looking to reduce costs and increase efficiency or for repair service companies, we will be your top choice.

Replacement SUNON fan MB60201V2-000U-A99 ,PMD1206PKVX-A

Replacement Delta fan AFB0624MD,AFB0612SH

Replacement EBM-papst fan 109L0612H402

Replacement NMB fan 2408NL-05W-B40 ,06020MA-24N-EL-00

Replacement Sanyo fan  109P0612H701
