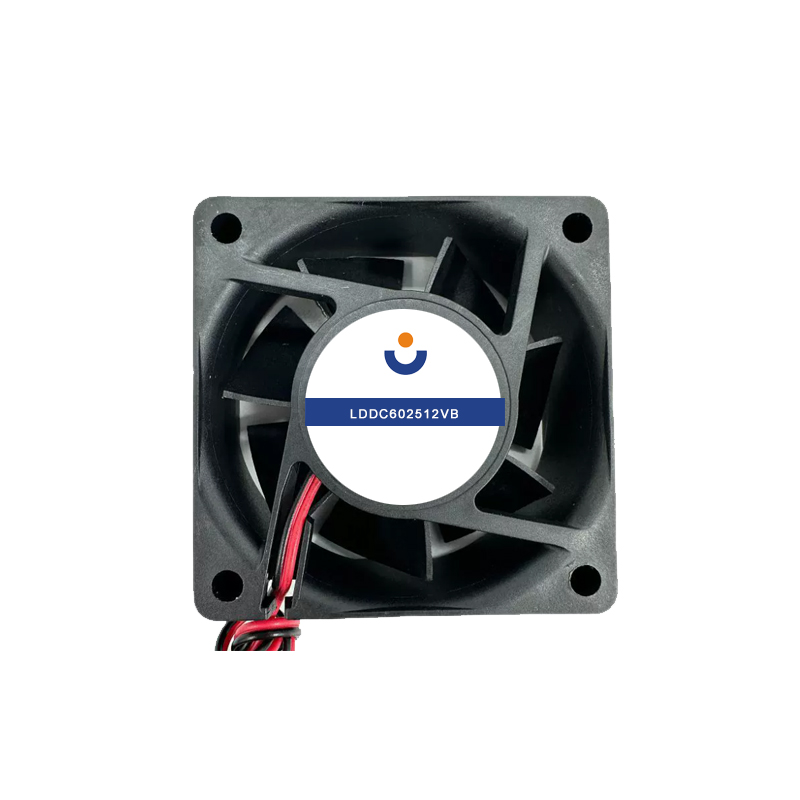

LD Customized DC6025, The design focus of the DC6025 cooling fan is on balancing performance and reliability, while also considering noise control and intelligent control functions. It is widely used in various devices ranging from consumer electronics to industrial automation and is one of the core components of modern electronic equipment cooling systems.

Size:60*60*25mm;

Voltage:5V/12V/24V/48V;

Bearing:Ball Bearing/Sleeve Bearing/Hydraulic Bearing;

Materials:PBT;

Speed:2500~6000RPM;

CFM:19~37CFM;

Noise:27~45db;

LDDC6025 accepts the following customizations ：

Fan Frame and Blade Material

Fan Label

Fan wiring harness, cable length, terminals

Speed/Airflow

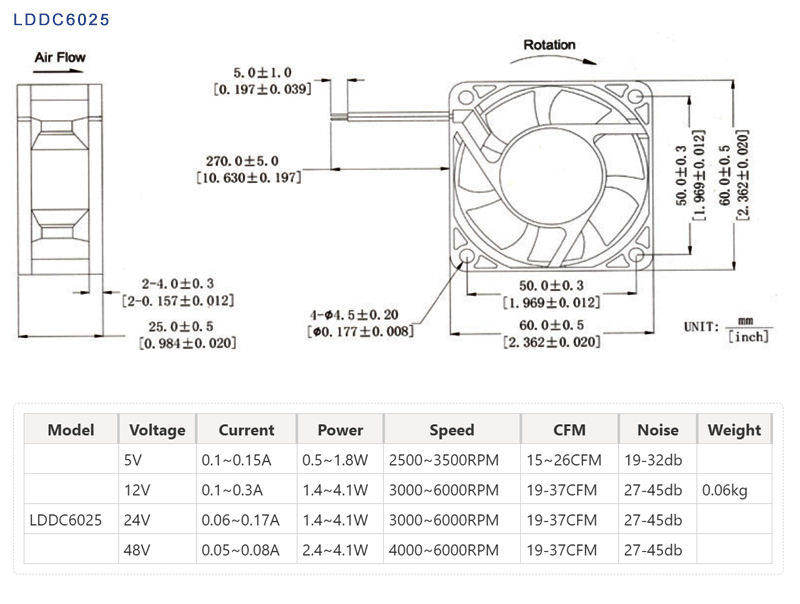

LDDC6025 Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC6025 Design Application Product Types:

Electronic equipment: computer main unit, graphics card, power supply, router, switch, NAS storage device

Industrial Automation: PLC Control Cabinets, Servo Drives, Frequency Converters, Industrial Computers (IPC), Sensor Modules

Communication equipment: 5G base stations, server cabinets, UPS power supplies, communication modules

New energy sector: charging stations, inverters, battery management systems (BMS), energy storage equipment

Medical equipment: CT scanners, MRI equipment, monitors, oxygen generators, portable medical devices

Automotive Electronics: Car Chargers, DC-DC Converters, Battery Cooling Systems

Others: Laser equipment, stage lighting, smart home devices, small home appliance cooling
