Product Description
LD Customized DC8010 Cooling Fan ,The core design of the cooling fan focuses on balancing and optimizing performance, reliability, noise, and energy efficiency across four key dimensions:
Size:80*80*10mm;
Voltage:5V/12V/24V;
Bearing:Ball Bearing/Sleeve Bearing/Hydraulic Bearing;
Materials:PBT;
Speed:1500~2500RPM;
CFM:26~47CFM;
Noise:20~26db;
LDDC8010 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow

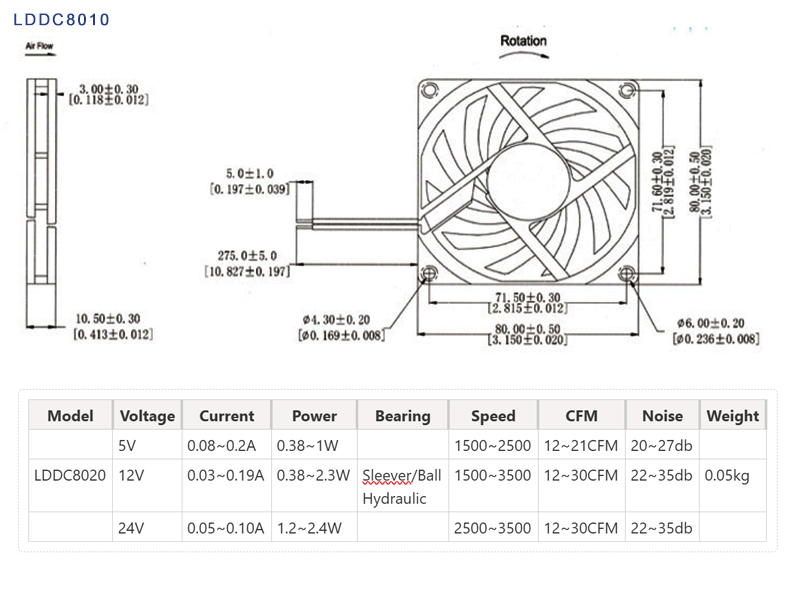

LDDC8010 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC8010 Design Application Product Types:
Industrial Control: Frequency Inverters, Servo Drives, PLC Control Cabinets, Industrial Power Supplies, Embedded Systems
Consumer Electronics: 3D printers, projectors, audio amplifiers, automotive electronics, set-top boxes
Communication equipment: routers, switches, optical modems, small base stations, communication power supplies
Medical equipment: ultrasound diagnostic devices, monitors, analyzers, and other precision instruments
LED Lighting: LED Displays, Stage Lighting, Outdoor Advertising Light Boxes
Other: Sports equipment (treadmills), server cooling assistance, gaming consoles, charging stations, etc.
How to Choose Different Bearings for Cooling Fans:
Sleeve Bearings: These are sleeve bearings that use sliding friction and rely on lubricating oil as a lubricant and friction reducer. Low operating noise and low cost during initial use. The lifespan of ordinary oil-impregnated bearings is typically between 5,000 and 6,000 hours.
Hydraulic Bearing: The hydraulic bearing is an improvement on the oil-impregnated bearing, featuring a larger oil storage space and a unique loop-back oil supply circuit. This type of bearing inherits the advantages of oil-impregnated bearings and has a longer lifespan than oil-impregnated bearings, with an average lifespan of up to 40,000 hours.
Ball bearings: They change the way bearings operate by using rolling friction, which more effectively reduces friction between the bearing surfaces and significantly extends the lifespan of fan bearings. Ball bearings are divided into single ball bearings and double ball bearings:
Single Ball Bearing : Combines sliding friction and rolling friction, with a service life of up to 40,000 hours, but the operating noise will increase.
Double Ball Bearings: These are relatively high-quality bearings with an extremely long lifespan, approximately 50,000-100,000 hours. They are suitable for fans with higher rotational speeds, but the manufacturing cost is high and they tend to produce more noise.
