Product Description

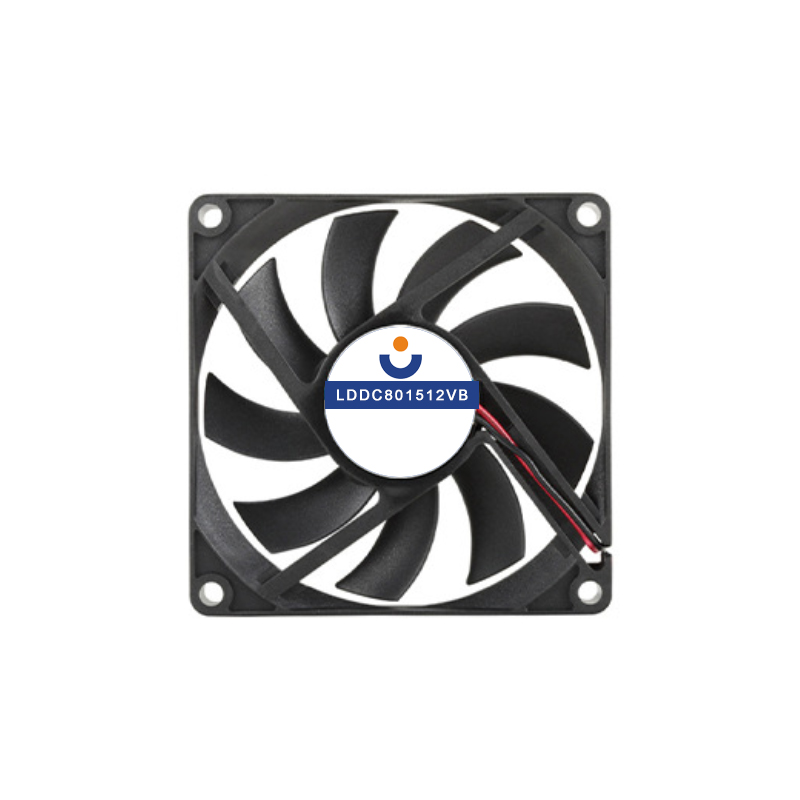

LDDC8015 80×80×15mm size DC brushless axial cooling fan is a standard thin-profile fan specification widely used in the industrial and consumer electronics fields.
The DC8015, with its slim design and moderate airflow characteristics, is widely used in the following areas:
Industrial Electronics
Frequency Inverter, Servo Drive, PLC Control Cabinet
Charging station modules, energy storage systems (PCS), inverters
5G communication equipment, network switches, routers
Consumer Electronics
Computer Case, Ultra-Thin Power Supply
Projector, TV box, game console
Medical equipment (ultrasound, oxygen generators), security monitoring equipment
Special Application Category
3D printer (hot end cooling), LED display
Automotive Electronics (Car Inverters, Navigation Systems)
Home Appliances (Refrigerators, Air Conditioner Indoor Units)
Size:80*80*15mm;
Voltage:5V/12V/24V;
Speed:2500~3300RPM:
CFM:24~33CFM:
Noise:25~32db;
Bearing:Ball Bearing/Sleeve Bearing/Hydraulic Bearing;
Materials:PBT;
LDDC8015 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow

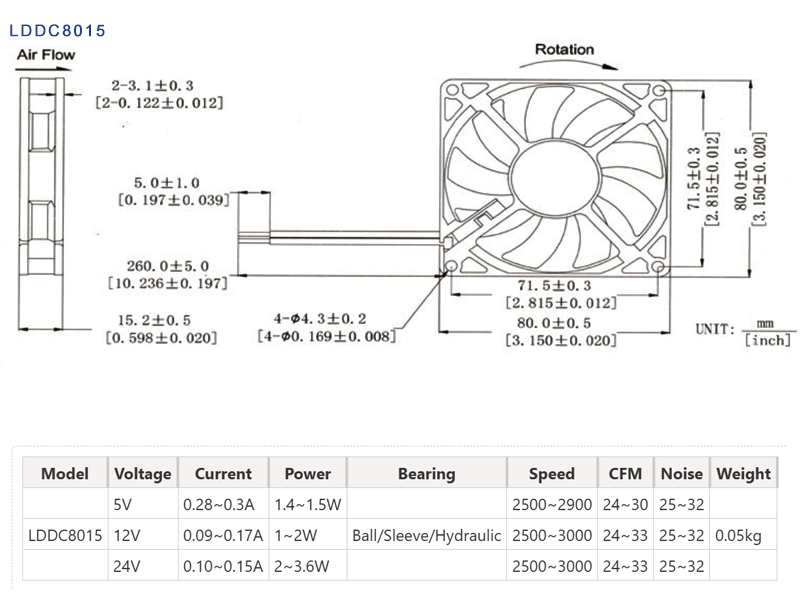

LDDC8015 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC8015 Design Parameters
How to Choose Different Bearings for Cooling Fans:
Sleeve Bearings: These are sleeve bearings that use sliding friction and rely on lubricating oil as a lubricant and friction reducer. Low operating noise and low cost during initial use. The lifespan of ordinary oil-impregnated bearings is typically between 5,000 and 6,000 hours.
Hydraulic Bearing: The hydraulic bearing is an improvement on the oil-impregnated bearing, featuring a larger oil storage space and a unique loop-back oil supply circuit. This type of bearing inherits the advantages of oil-impregnated bearings and has a longer lifespan than oil-impregnated bearings, with an average lifespan of up to 40,000 hours.
Ball bearings: They change the way bearings operate by using rolling friction, which more effectively reduces friction between the bearing surfaces and significantly extends the lifespan of fan bearings. Ball bearings are divided into single ball bearings and double ball bearings:
Single Ball Bearing : Combines sliding friction and rolling friction, with a service life of up to 40,000 hours, but the operating noise will increase.
Double Ball Bearings: These are relatively high-quality bearings with an extremely long lifespan, approximately 50,000-100,000 hours. They are suitable for fans with higher rotational speeds, but the manufacturing cost is high and they tend to produce more noise.
