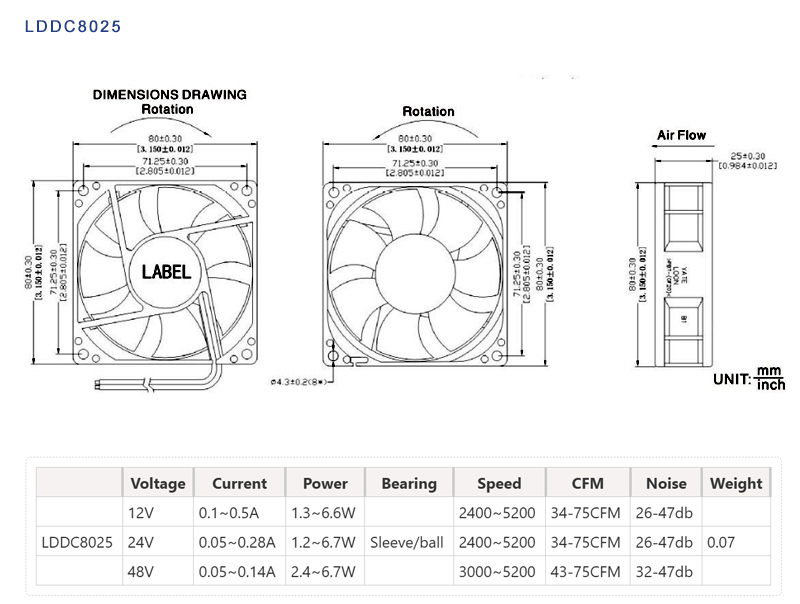

LDDC802512V  DC cooling fan  is designed for low noise and high airflow.

Size:80*80*25mm;

Voltage:12V/24V/48V;

Speed:2400~5200RPM;

CFM:34~75CFM;

Weight:0.07kg;

Noise:26~47db

LDDC8025 accepts the following customizations ：

Fan Frame and Blade Material

Fan Label

Fan wiring harness, cable length, terminals

Speed/Airflow

LDDC8025 Design Parameters

Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC8025 Application Equipment and Scenarios

LDDC8025 is widely used in  Warm Air Clothes Dryer/Mosquito Killer Lamp/Inverter Computer Fan.Moreover, in the industrial sector, it is widely used for cooling in industrial switches, control cabinets, audio equipment, UPS power supplies, industrial computers, and other devices due to its high airflow and low noise.

How to Choose Different Bearings for Cooling Fans:

Sleeve Bearings: These are sleeve bearings that use sliding friction and rely on lubricating oil as a lubricant and friction reducer. Low operating noise and low cost during initial use. The lifespan of ordinary oil-impregnated bearings is typically between 5,000 and 6,000 hours.

Hydraulic Bearing: The hydraulic bearing is an improvement on the oil-impregnated bearing, featuring a larger oil storage space and a unique loop-back oil supply circuit. This type of bearing inherits the advantages of oil-impregnated bearings and has a longer lifespan than oil-impregnated bearings, with an average lifespan of up to 40,000 hours.

Ball bearings: They change the way bearings operate by using rolling friction, which more effectively reduces friction between the bearing surfaces and significantly extends the lifespan of fan bearings. Ball bearings are divided into single ball bearings and double ball bearings:

Single Ball Bearing : Combines sliding friction and rolling friction, with a service life of up to 40,000 hours, but the operating noise will increase.

Double Ball Bearings: These are relatively high-quality bearings with an extremely long lifespan, approximately 50,000-100,000 hours. They are suitable for fans with higher rotational speeds, but the manufacturing cost is high and they tend to produce more noise.
