Product Description
LDDC9225 DC brushless axial cooling fans are standard products widely used in the industrial and consumer electronics sectors.24V is the most commonly used voltage in the industrial sector, while 12V is more commonly found in consumer electronics
Size:92*92*25mm;
Voltage:DC12V/24V/48V;
Materials:PBT;
Bearing:Sleeve/Ball Bearing;
Nosie:39-46db;
LDDC9225 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow

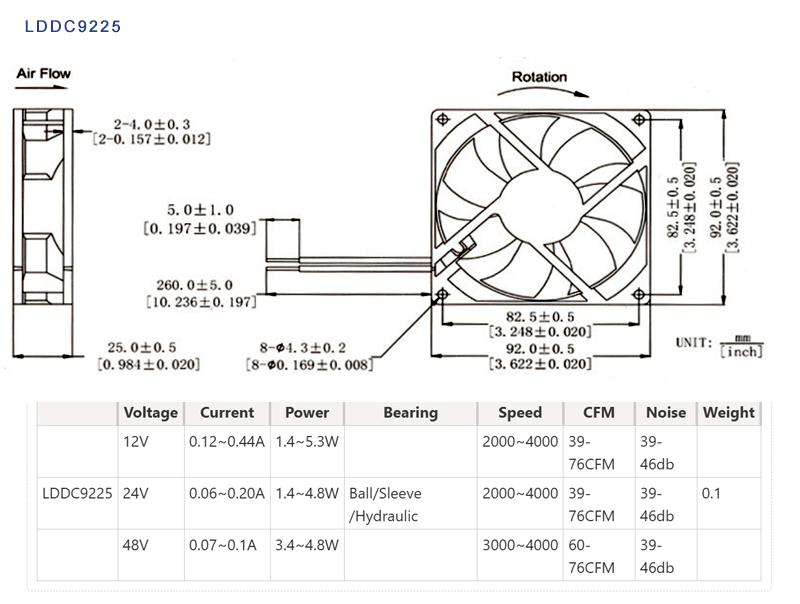

LDDC9225 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC9225 Design Parameters
The DC9225 fan is widely used in the following fields due to its moderate size, air volume, and air pressure:
1. Industrial automation and control equipment
Industrial control cabinet, PLC control system, DCS distributed control system
Stacking robots, robotic arms, and automated production line equipment
Variable frequency drive, servo drive, stepper motor controller
Control boxes for CNC machine tools, laser marking machines, and engraving machines
2. Power electronics and energy equipment
UPS uninterruptible power supply, EPS emergency power supply cooling system
Industrial power supply, communication power supply, switch power supply module
Energy storage system, inverter, charging station charging module
Photovoltaic inverter, wind power inverter
3. Communication and IT equipment
Servers, workstations, NAS network storage devices
Network devices such as switches, routers, firewalls, etc
Data center equipment room, communication base station cooling system
Industrial computers, embedded system hosts
4. Consumer electronics and office equipment
Desktop computer case, CPU cooler, graphics card cooling fan
Projector, fill light, LED display cooling system
Medical equipment (such as detectors and analyzers) with enclosed chambers for heat dissipation
Office equipment such as printers, copiers, and all-in-one machines
5. New energy and transportation equipment
Electric vehicle charging station, onboard inverter
Cooling module for high-speed rail and subway control system
Cooling of in car electronic devices and navigation systems
Battery Management System (BMS) heat dissipation
6. Other special applications
Medical equipment (such as ultrasound machines, monitors)
Commercial ice makers and refrigeration equipment heat dissipation
Stage lighting and sound equipment heat dissipation
Air purifier, ventilation system auxiliary fan
How to Choose Different Bearings for Cooling Fans:
Sleeve Bearings: These are sleeve bearings that use sliding friction and rely on lubricating oil as a lubricant and friction reducer. Low operating noise and low cost during initial use. The lifespan of ordinary oil-impregnated bearings is typically between 5,000 and 6,000 hours.
Hydraulic Bearing: The hydraulic bearing is an improvement on the oil-impregnated bearing, featuring a larger oil storage space and a unique loop-back oil supply circuit. This type of bearing inherits the advantages of oil-impregnated bearings and has a longer lifespan than oil-impregnated bearings, with an average lifespan of up to 40,000 hours.
Ball bearings: They change the way bearings operate by using rolling friction, which more effectively reduces friction between the bearing surfaces and significantly extends the lifespan of fan bearings. Ball bearings are divided into single ball bearings and double ball bearings:
Single Ball Bearing : Combines sliding friction and rolling friction, with a service life of up to 40,000 hours, but the operating noise will increase.
Double Ball Bearings: These are relatively high-quality bearings with an extremely long lifespan, approximately 50,000-100,000 hours. They are suitable for fans with higher rotational speeds, but the manufacturing cost is high and they tend to produce more noise.
How to Apply for Free Fan Samples?
- For our SVIP customers: All standard in-stock fan models: eligible for 5 free samples per year. Selected parameter-customized products: eligible for 1 free sample per year. Made-to-order products: not eligible for free samples.
- For our VIP customers: All standard in-stock fan models: eligible for 2 free samples per year. Selected parameter-customized products: eligible for 1 free sample per year. Made-to-order products: not eligible for free samples.
- For first-time buyers of our fans: All standard in-stock fan models: eligible for 1 free sample (one-time). Selected parameter-customized products: eligible for 1 free sample (one-time). Made-to-order products: not eligible for free samples.
Shipping Terms for Free Fan Samples
- If you request a sample with a formal order: Samples < 1 kg: free shipping. Samples > 1 kg: eligible for discounted shipping.
- For VIP/SVIP customers with a delivery address in China: Samples < 1 kg: enjoy 3 free shipping opportunities per year. Samples > 1 kg: eligible for discounted shipping.
- For overseas delivery addresses: Shipping cost is charged based on actual freight. To avoid damage, loss or other transit problems, we do not accept pickup by FedEx, UPS or DHL.
