Product Description
LDTD17251 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
The standard model does not have the above features; you can customize and select the corresponding features according to your needs, and cooling fans
LDTD17251 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow

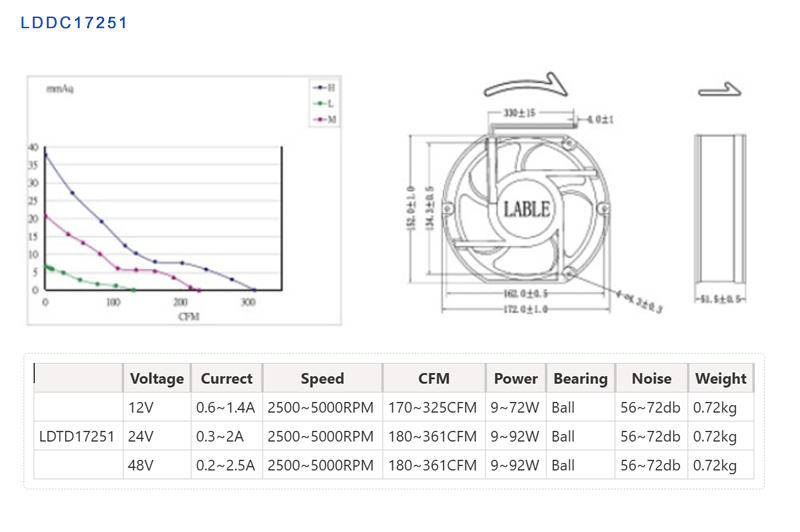

LDTD17251 Design Parameters

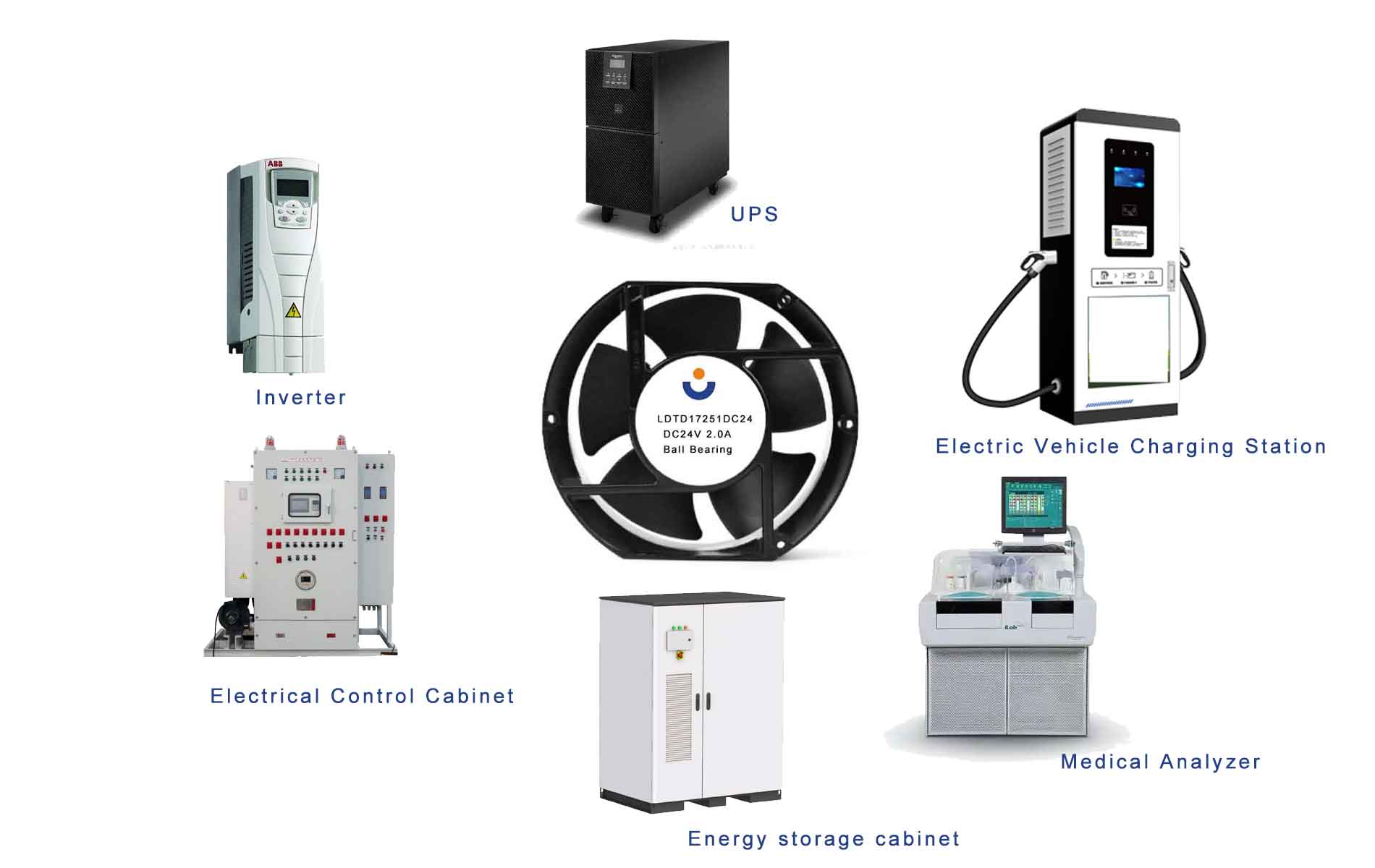

LDTD17251 Application Equipment and Scenarios
LD Industry FAN LDTD17251DC24V Designed specifically for cooling fans of inverters and industrial PC equipment.The main applications for the customers include new energy charging stations, photovoltaic energy storage cabinets, industrial PCs and inverters
It is used by maintenance engineers around the world to repair and replace the cooling fan of the ABB ACS510 series inverter, Delta model EFB1524SHG.
