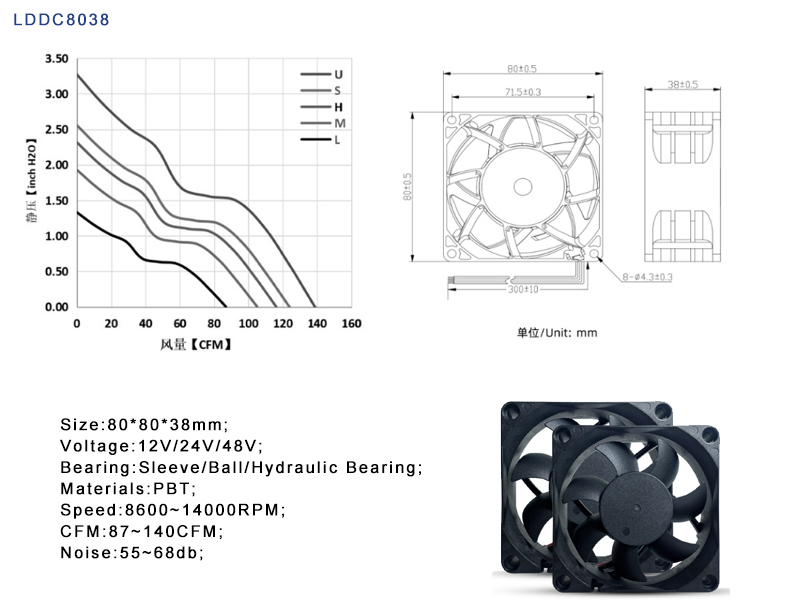

LD Customized DC8038 24V Replacement for Sanyo Denki 9GV0824P1G031,Ball Bearing, 4Wire,80*80*38mm,1000RPM,1.57A,DC 18~26V,65db,137CFM,50mmh2o.
LDDC8038 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow
LDDC8038 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
Complete comparison of the two parameters：
| Model | LDDC803824B1 | 9GV0824P1G031 |
|---|---|---|
| Price | $5.00/pcs. | $30.00/pcs. |
| Voltage | 24V | 24V |
| Current | 1.57A | 1.60A |
| Speed | 10000RPM | 10800RPM |
| CFM | 137CFM | 138CFM |
| Wire | 2/3/4wire | 4wire |
| Bearing | Ball | Ball |
| Size | 80*80*38mm | 80*80*38mm |
LDDC803824B1 We can guarantee that our parameters can match 9GV0824P1G03 by more than 90%.
If you wish to reduce your manufacturing costs, improve your manufacturing efficiency, and speed up your cash flow. Then you can contact us at any time to obtain samples for testing.
Similarly, our company's products have also been validated by the market. Our DC8038 waterproof, high-pressure cooling fan is widely used in global charging stations, outdoor energy storage, power supplies, distribution cabinets, and other equipment that requires high-volume axial fans.
